Scuff protection Schlüüchu

• Client: Municipality of Gampel – Bratsch
• Construction management / contact person: INGENES AG – Nikola Vasilic
• Site manager: Jasin Ajeti
• Foreman: Orlando Truffer
• Construction period: January to March 2024
• Construction costs: $400,000

Technical data:

• 55 m³ concrete demolition
• 3,260 m³ excavation
• 2,600 m³ backfilling
• 650 m³ removal
• 900 tons delivery of stones
• 200 m² formwork
• 280 m² counterformwork
• 44,000 kg reinforcement
• 620 m³ concrete
• 2,500 tons block carpet embedded in concrete

Project description:

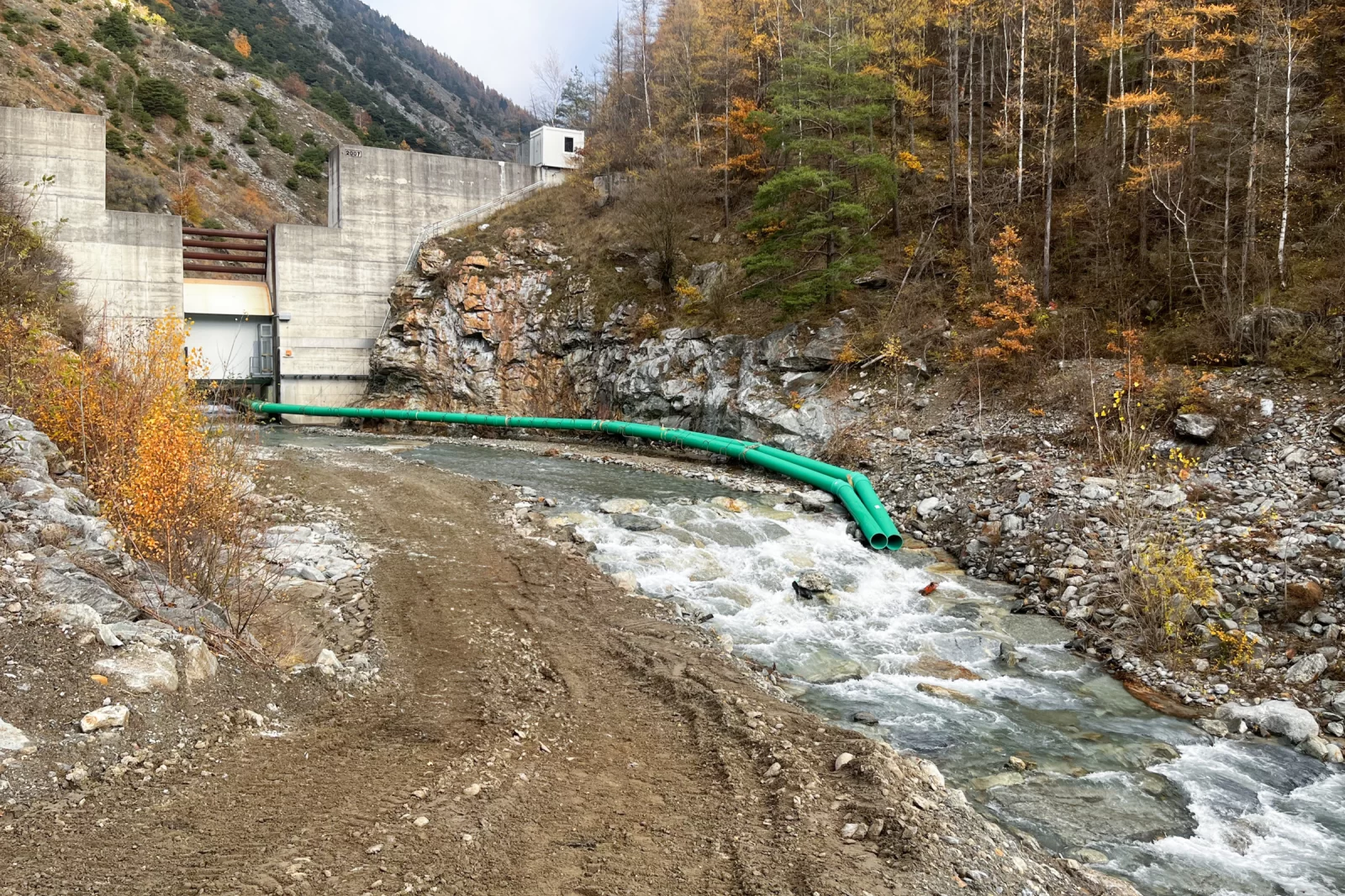

The construction work includes the creation of scour protection in front of the Schlüüchu barrier. A safety concept was drawn up for the work in the channel, which included a safety plan for natural hazards during the construction phase and had to be strictly adhered to.

The following work was carried out:

• Construction installations
• Construction site access
• Maintenance and operation of water drainage
• Excavation work
• Concrete work, including all necessary winter protection measures
• Creation of concrete-encased block foundations
• Backfilling and embankments
• Dismantling and disposal of temporary water drainage systems
• Demolition of access ramp
• Demolition and restoration of construction installation and landfill sites
• Finishing work

Requirements

• Material management
• Work on open water bodies
• Short construction period
